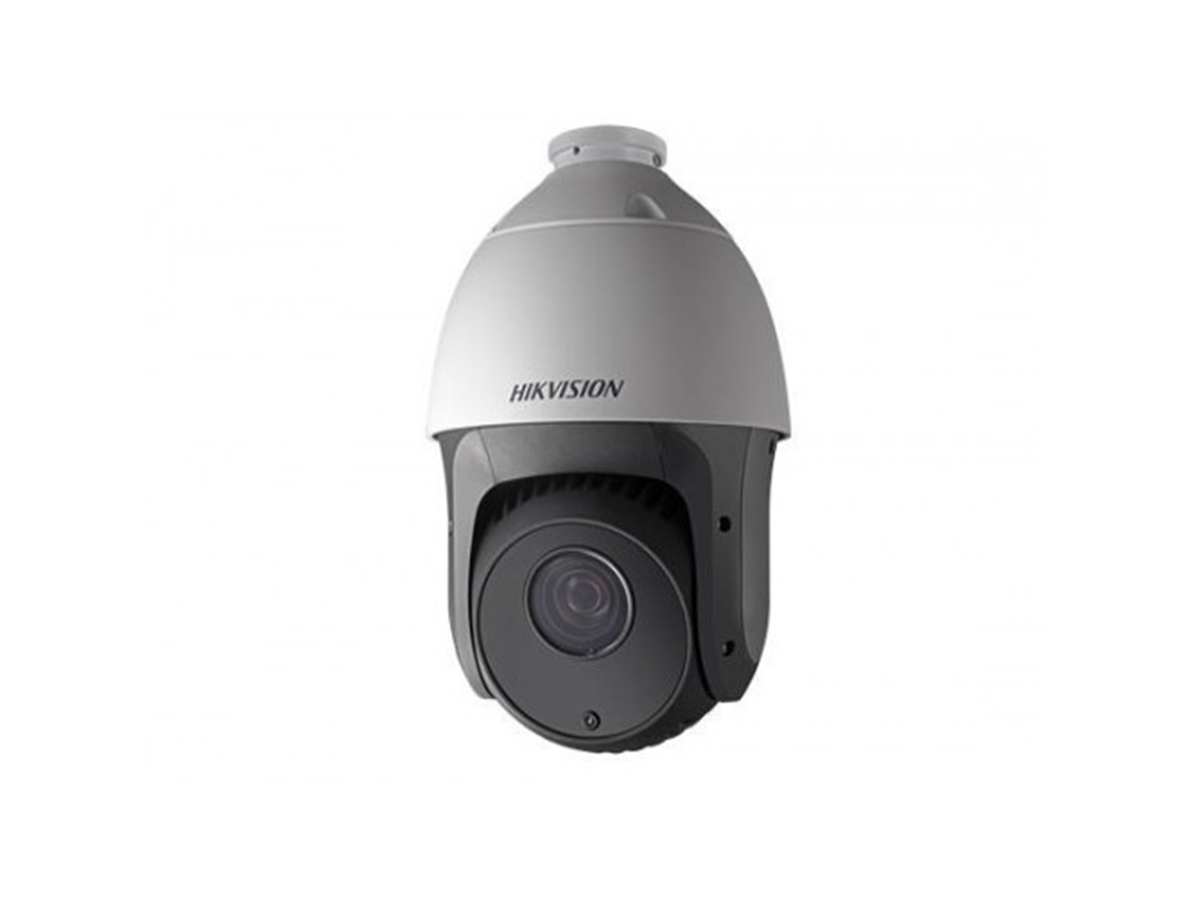

Hikvision DS-2AE4223TI-D HD1080P Turbo IR PTZ Dome Camera
Hikvision
DS-2AE4223TI-D
In Stock
- Full HD 1080P
- 23X Optical Zoom
- 100m IR Night
- 360° PTZ Control
- Turbo HD Output
Overview
Hikvision DS-2AE4223TI-D 1080P Turbo IR PTZ Dome Camera | Smart Safety & Automations Ltd.
Struggling with blind spots or weak night surveillance? The Hikvision DS-2AE4223TI-D HD1080P Turbo IR PTZ Dome Camera solves both with precision monitoring and powerful optical zoom.

Security gaps cost money and peace of mind. Warehouses, retail spaces, office buildings, and residential compounds all demand dependable monitoring that can track movement and capture detail from long distances. The Hikvision DS-2AE4223TI-D HD1080P Turbo IR PTZ Dome Camera addresses those challenges with dynamic pan-tilt-zoom control, long-range infrared capability, and intelligent positioning accuracy.
Within the Security Surveillance category, this PTZ Camera stands out for environments that require wide coverage and detailed tracking. Businesses across Bangladesh rely on PTZ solutions like this to monitor entrances, parking zones, shop floors, and perimeter areas from a single camera position.
- Full HD 1080P imaging: 1/2.8" progressive scan CMOS sensor delivering 1920×1080 resolution
- 23x optical zoom + 16x digital zoom: 4–92mm lens (49°–2.2° angle of view) for detail at long distance
- Up to 100m smart IR: IR intensity adjusts automatically with zoom; 0 Lux with IR for true night vision
- 360° endless pan, –15° to 90° tilt with auto flip and ±0.1° preset accuracy
- 256 presets, 8 patrols, 4 patterns: automate guard tours across critical points
- 3D intelligent positioning: click-and-drag on screen to centre and zoom on a target
- Clear images in tough light: DWDR, BLC, 3D DNR and electronic image stabilisation (EIS)
- Privacy protection: up to 8 programmable privacy masks
- Built for outdoors: IP66 weatherproof, 4,000V TVS lightning, surge and voltage transient protection, –30°C to 65°C operation
- Flexible output and control: Turbo HD + CVBS dual output, RS-485 (Hikvision / Pelco-P / Pelco-D), and Up-the-Coax (UTC) control
- Power-off memory: restores PTZ and lens position automatically after a power cut
Ideal Applications
- Banking & finance: branch exteriors, ATM zones, cash-in-transit areas
- Industrial & warehousing: factory yards, loading bays, fence lines
- Education & healthcare: campuses, hospital compounds, entry roads
- Government & corporate: building perimeters, car parks, gate approaches
- Hospitality & retail: parking areas, outdoor plazas, service entrances
Why Buy from Smart Safety & Automations Ltd.?
- Authorised Hikvision partner: genuine products with manufacturer-backed support
- One partner, end to end: site survey, design, supply, installation, commissioning and post-sales AMC
- Certified engineers: correct mounting, cabling, PTZ tour programming and DVR/NVR integration
- Zero vendor bias: with 80+ authorised brands, we recommend what fits your site and budget
- Nationwide coverage with 24/7 emergency support
- Heritage since 1998: backed by 28+ years of group experience through Smart Technologies (BD) Ltd
Not sure if a PTZ is right for your site?
Book a free site survey. Our engineers will assess your coverage needs, identify blind spots, and recommend the right mix of PTZ and fixed cameras.
📞 Hotline: +880 9678-100555 | Mobile: +88 017 9998 6890
✉️ info@smartsafety.com.bd
Specification
Technical Specifications
| Model | DS-2AE4223TI-D |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 (1080P) |
| Min. Illumination | Color: 0.05 Lux @ F1.4 (AGC ON); B/W: 0.005 Lux @ F1.4 (AGC ON); 0 Lux with IR |
| Focal Length | 4–92.0mm, 23x optical |
| Digital Zoom | 16x |
| Zoom Speed | Approx. 3s (optical wide–tele) |
| Angle of View | 49°–2.2° (wide–tele) |
| Aperture | F1.4–F3.5 |
| Focus Mode | Auto / Semi-automatic / Manual |
| Shutter Time | 1 to 1/10,000s |
| S/N Ratio | ≥ 50dB |
| White Balance | Auto / Manual / ATW / Indoor / Outdoor |
| Day & Night | IR Cut Filter |
| Image Enhancement | DWDR, 3D DNR, BLC, EIS |
| Privacy Mask | 8 programmable zones |
| Pan Range | 360° endless |
| Tilt Range | –15° to 90° (auto flip) |
| Pan / Tilt Speed | Manual: 0.1°–80°/s; Preset: 80°/s |
| Presets / Patrols / Patterns | 256 / 8 (up to 32 presets each) / 4 |
| Park Action & Scheduled Tasks | Preset, patrol, pattern, pan scan, tilt scan, panorama scan |
| IR Distance | Up to 100m, smart IR |
| Video Output | 1× Turbo HD 720P/1080P + CVBS, BNC (1.0V p-p / 75Ω) |
| Control Interface | RS-485 (half-duplex), Hikvision / Pelco-P / Pelco-D; UTC (Hikvision-C) |
| Power | 12V DC, max. 18W |
| Operating Conditions | –30°C to 65°C; humidity 90% or less |
| Protection | IP66; 4,000V TVS lightning, surge and voltage transient protection |
| Dimensions | Ø164.5 × 295mm |
| Weight | Approx. 2kg |
